Smart Doubling Track Overdubbing

"Panjang setiap trek overdub dari LOOP 1 atau 2 dapat dikontrol sebagai kelipatan bilangan bulat dari panjang trek dasarnya sendiri. Jika LOOP saat ini berisi rekaman, durasi overdub dapat diatur sebagai kelipatan bilangan bulat dari panjang trek loop saat ini. Ini adalah teknik yang berguna bagi pemain yang kreatif. Jika waktu rekaman overdub bukan merupakan kelipatan bilangan bulat setelah footswitch ditekan untuk mengakhiri perekaman, lampu footswitch akan berubah menjadi biru dan berkedip perlahan hingga perekaman secara otomatis berakhir pada kelipatan bilangan bulat."

★★★★★

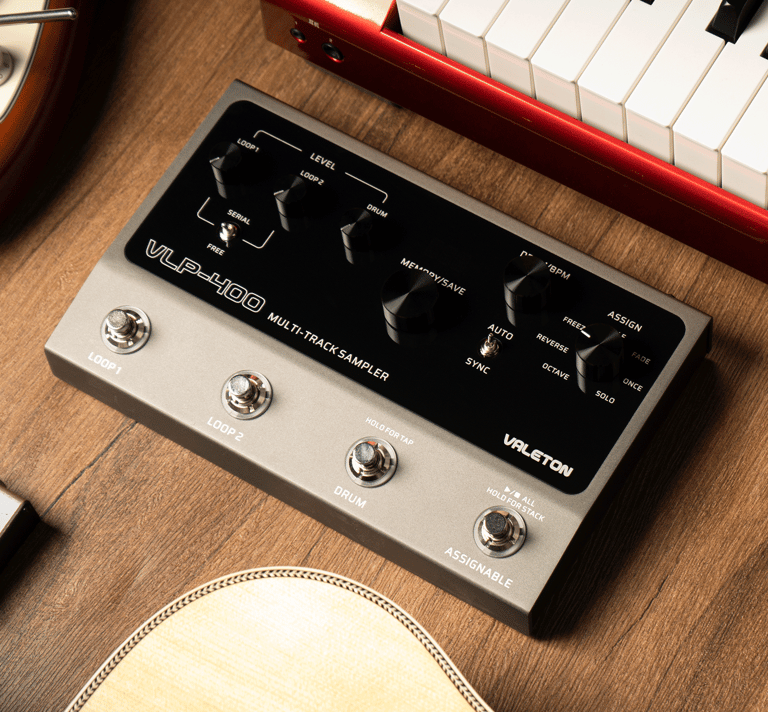

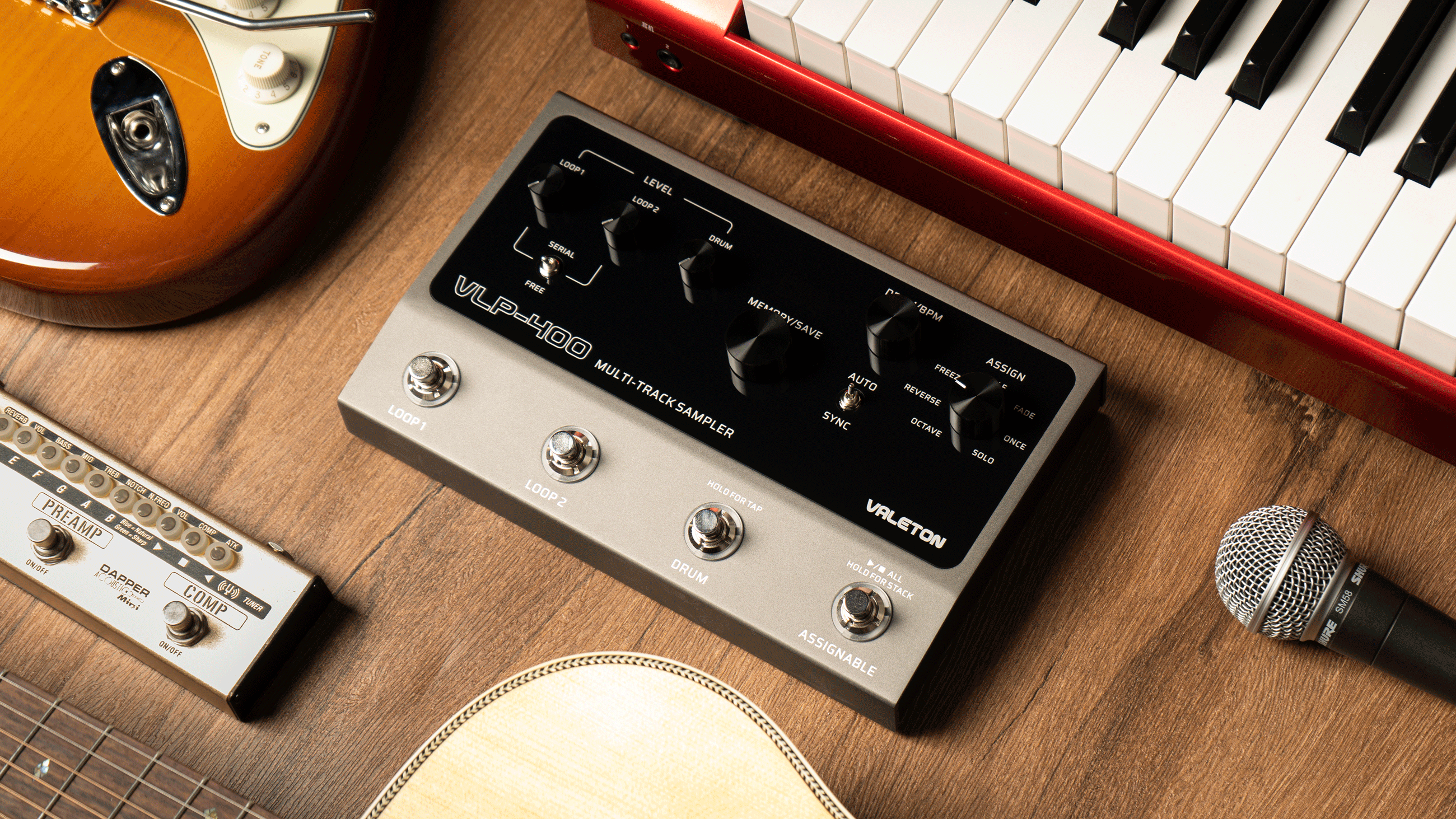

Features

● 24-bit/48 kHz high performance audio

● Two-channel inputs and two-channel outputs, supports mono and stereo devices

● INPUT-L have two modes for connecting a microphone or an instrument

● Two footswitches (LOOP 1/LOOP 2) can independently control the recording and playback of LOOP 1 and LOOP 2

● Overdub supports doubling the length of the of the current loop track by integer multiples

● Two Loop playback modes: SERIAL and FREE

● The built-in storage space for 99 recording projects, and store up to 7 hours of stereo files

● Built-in 100 new rhythm patterns including metronome

● Supports drum SYNC function

● Supports external footswitch to control drum machine

● You can import and export recording projects and update firmware with supporting software via USB

● Rugged cast metal chassis

● DC 9V power supply

Specifications

AD/DA：24-bit/48 kHz

Maximum project saving: 99

Maximum recording storage: about 7 hours

Recorded format: WAV (24-bit, 48 kHz, stereo)

Drum rhythm: 100 or more + Metronome

Playback modes: SERIAL or FREE

MIDI(IN/OUT): 1/8″ TRS MIDI connectors

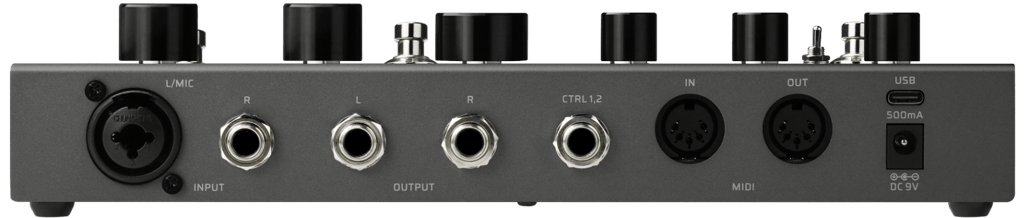

Analog input and output connections

INPUT(L/R): 2×1/4″ Unbalanced (TS)

Input impedance: 1MΩ

OUTPUT(L/R): 2×1/4″ Unbalanced (TS)

Output impedance: 4.7KΩ

Headphone Jack: One 3.5mm (1/8") TRS output

Output impedance: 16Ω

Digital connection & USB port: USB 2.0 Type-C

Dimensions and Weight

Dimensions: 119.5mm (W) x 104.9mm (D) x 54mm (H)

Unit weight: 639g

Power Requirements

Power supply requirements: DC 9V, 500mA, Center Negative
